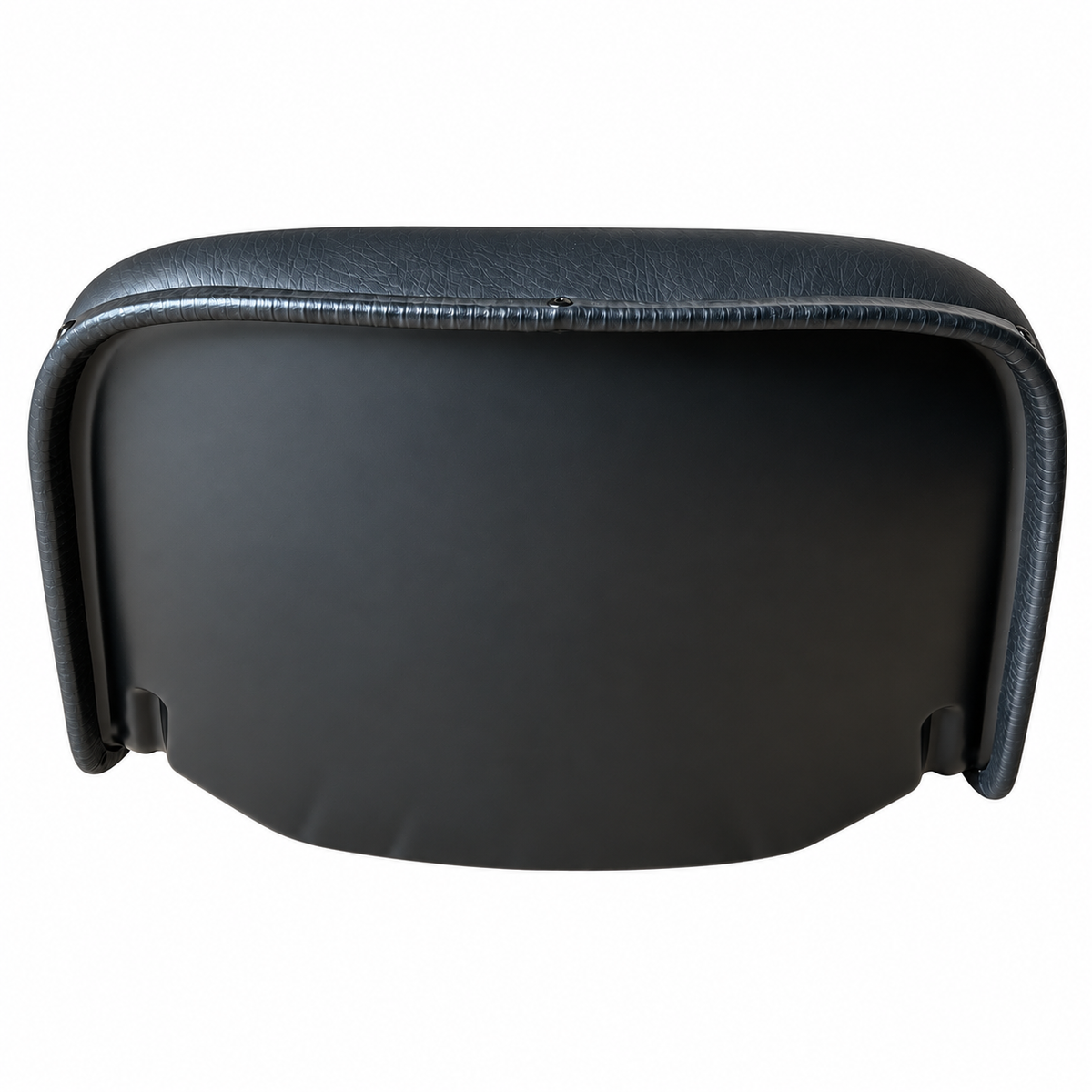

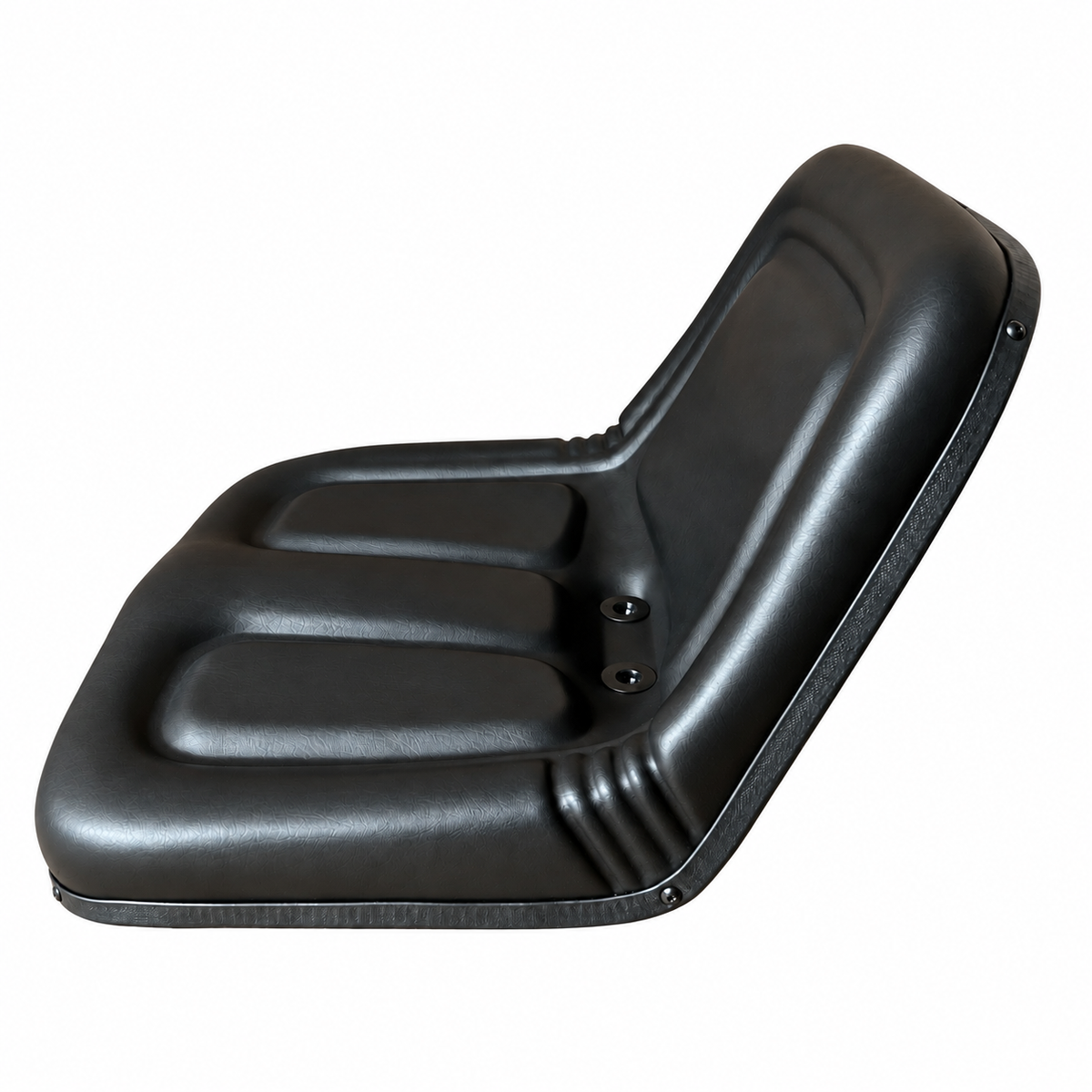

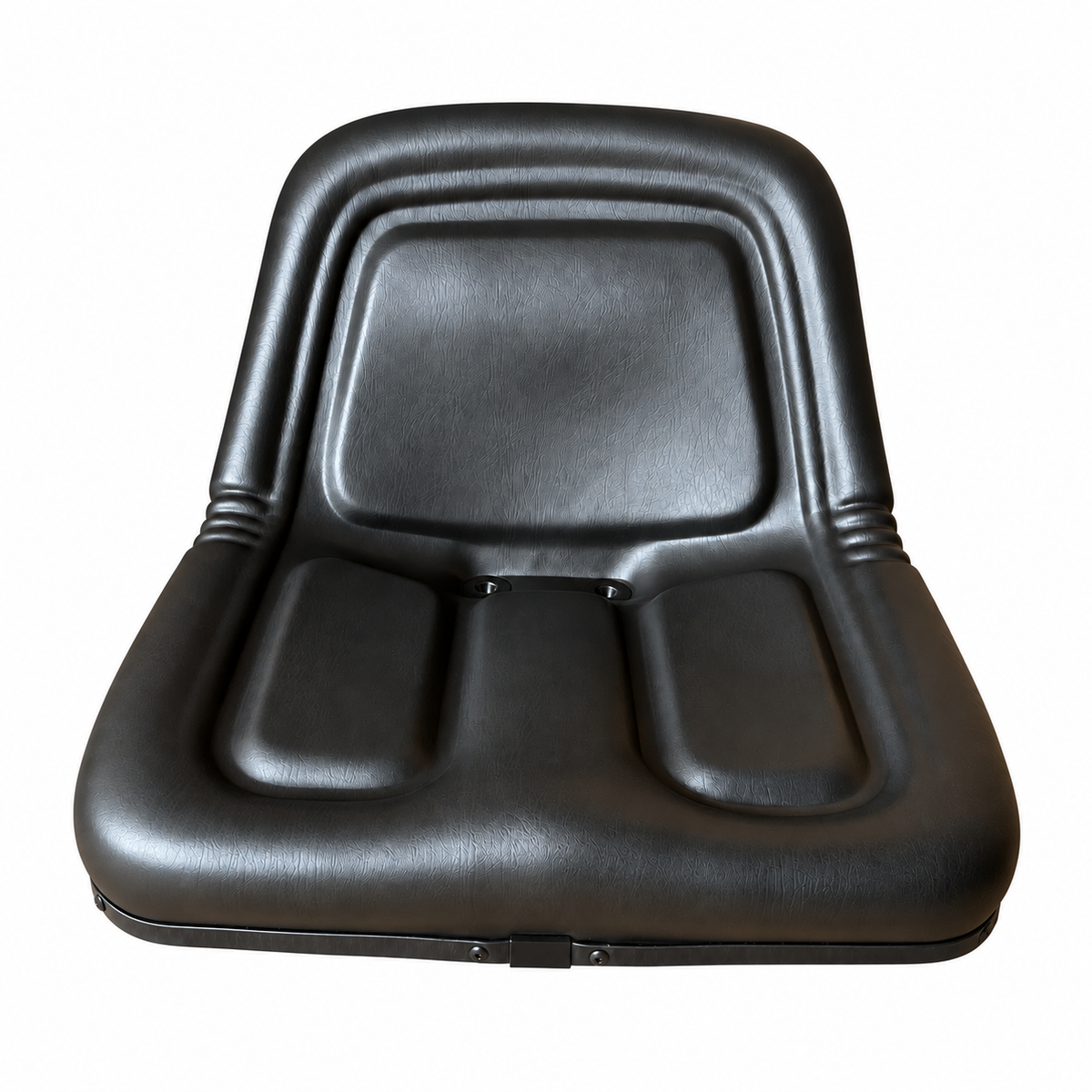

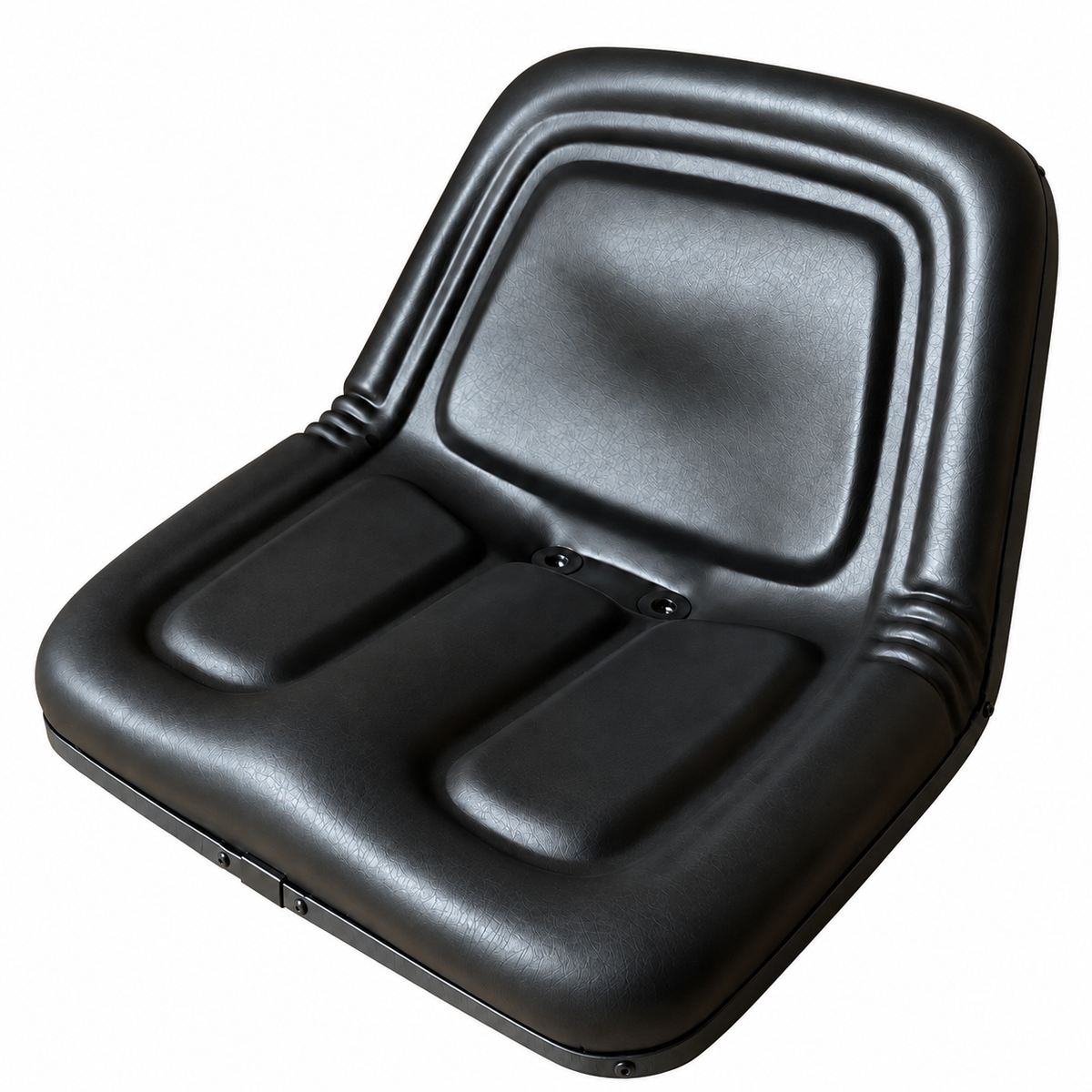

AQS120 Black Low Back Vinyl Seat

The AQS120 is a low back universal-pattern seat in hard-wearing black vinyl over a metal-framed moulded base, for replacing worn, cracked, split or faded seating on ride-on mowers, garden tractors, utility vehicles, mini diggers and compact plant and turf equipment.

Choose 1x seat for the seat on its own, or 1x seat with runners for the seat supplied with a set of AQS005 sliding runners and the fixing kit to bolt them on.

Please read before ordering

This is a universal-pattern seat, described by its own dimensions. It may suit machines from makers including John Deere, JCB and Kubota — but that is subject to checking the hole pattern, dimensions and mounting layout against your original. It is not sold as a model-specific replacement for any particular machine.

Low back, static seat. At 335 mm overall height this is a low back seat — back support sits lower than a mid or high back seat, so check the height against your original before ordering. It is also a fixed-base seat, not a suspension seat.

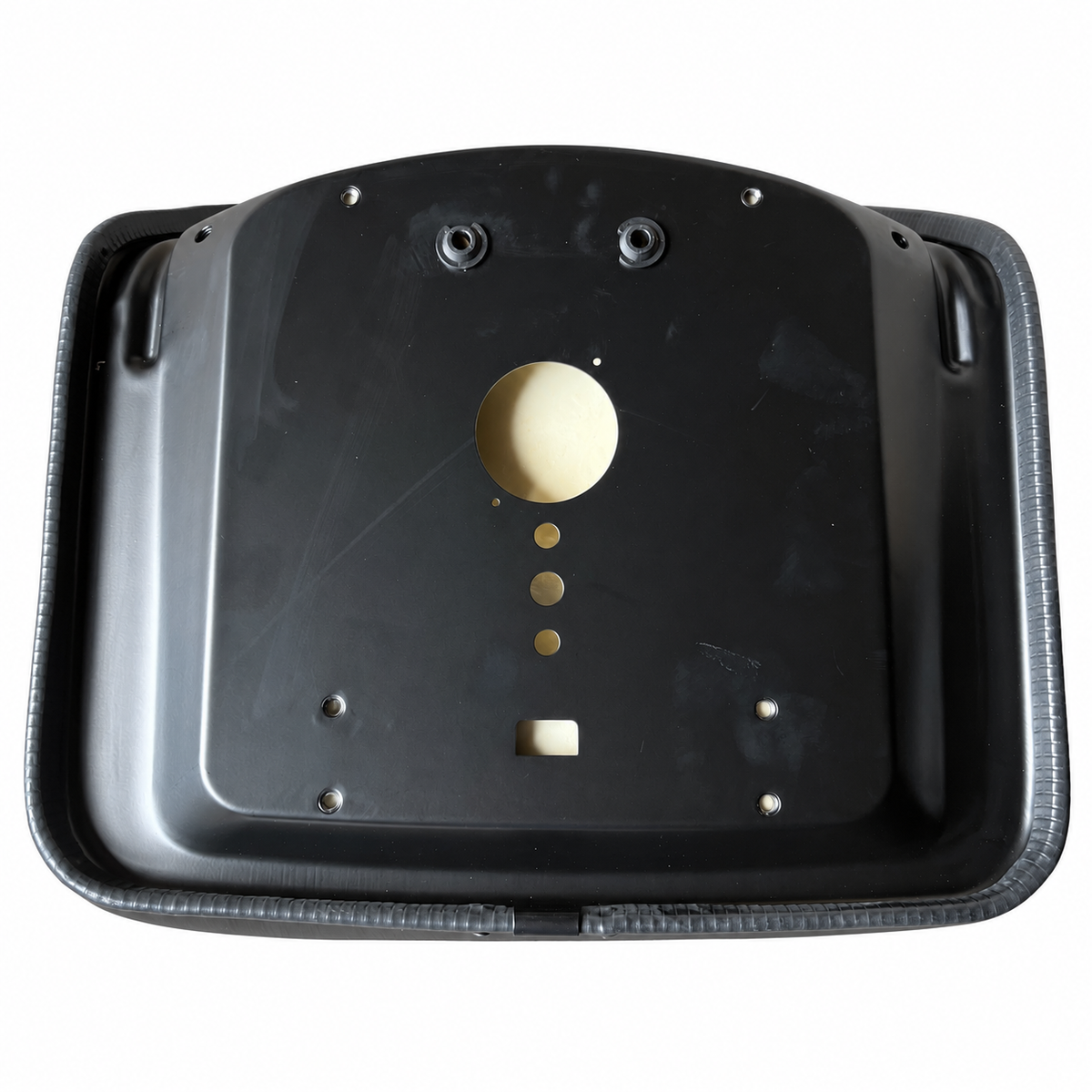

Switch aperture — please check this first if your machine has a seat switch. 70 mm round, with screw fixings at 85 mm centres, for a screw-mount switch. It will not accept a twist-lock (bayonet) switch. No seat switch is supplied.

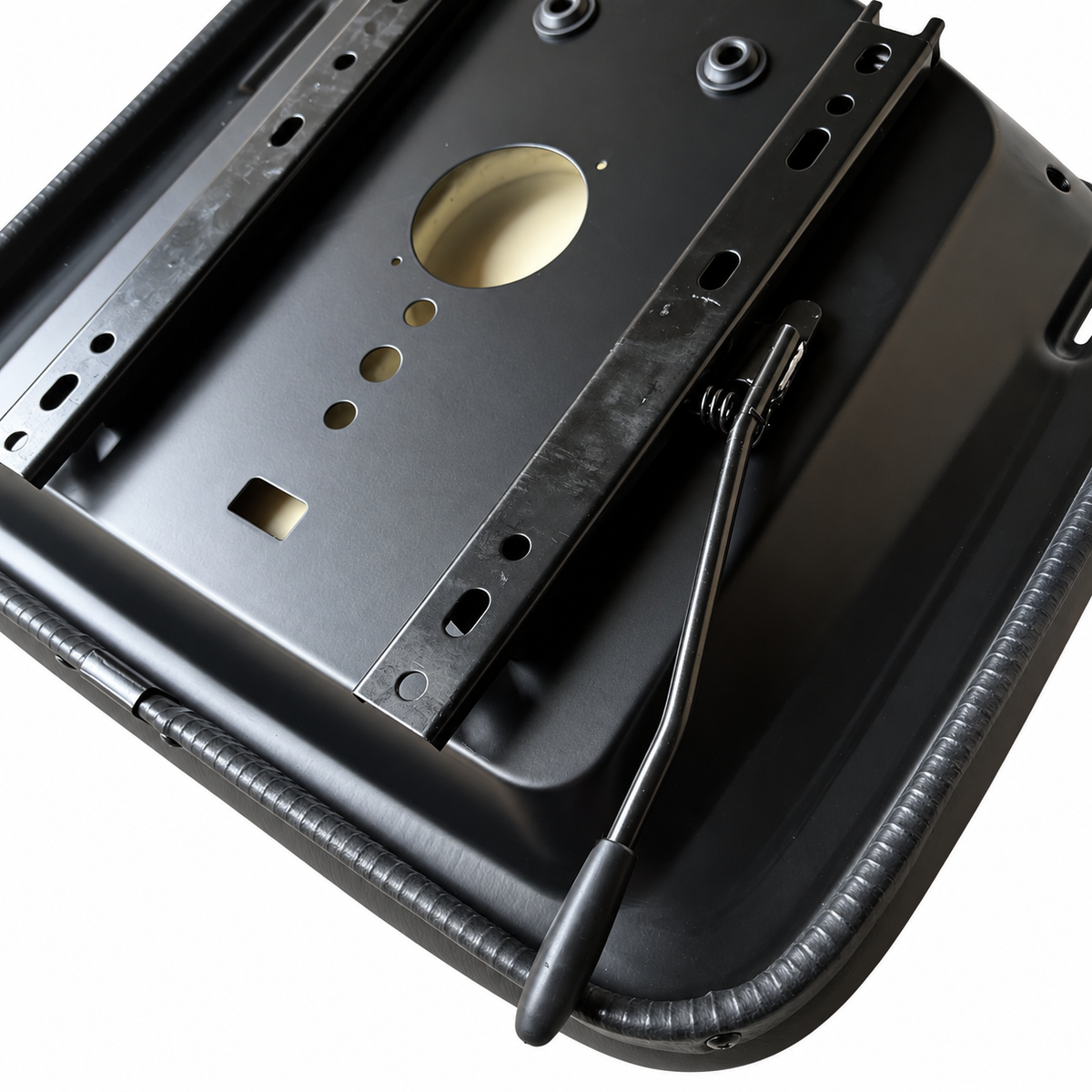

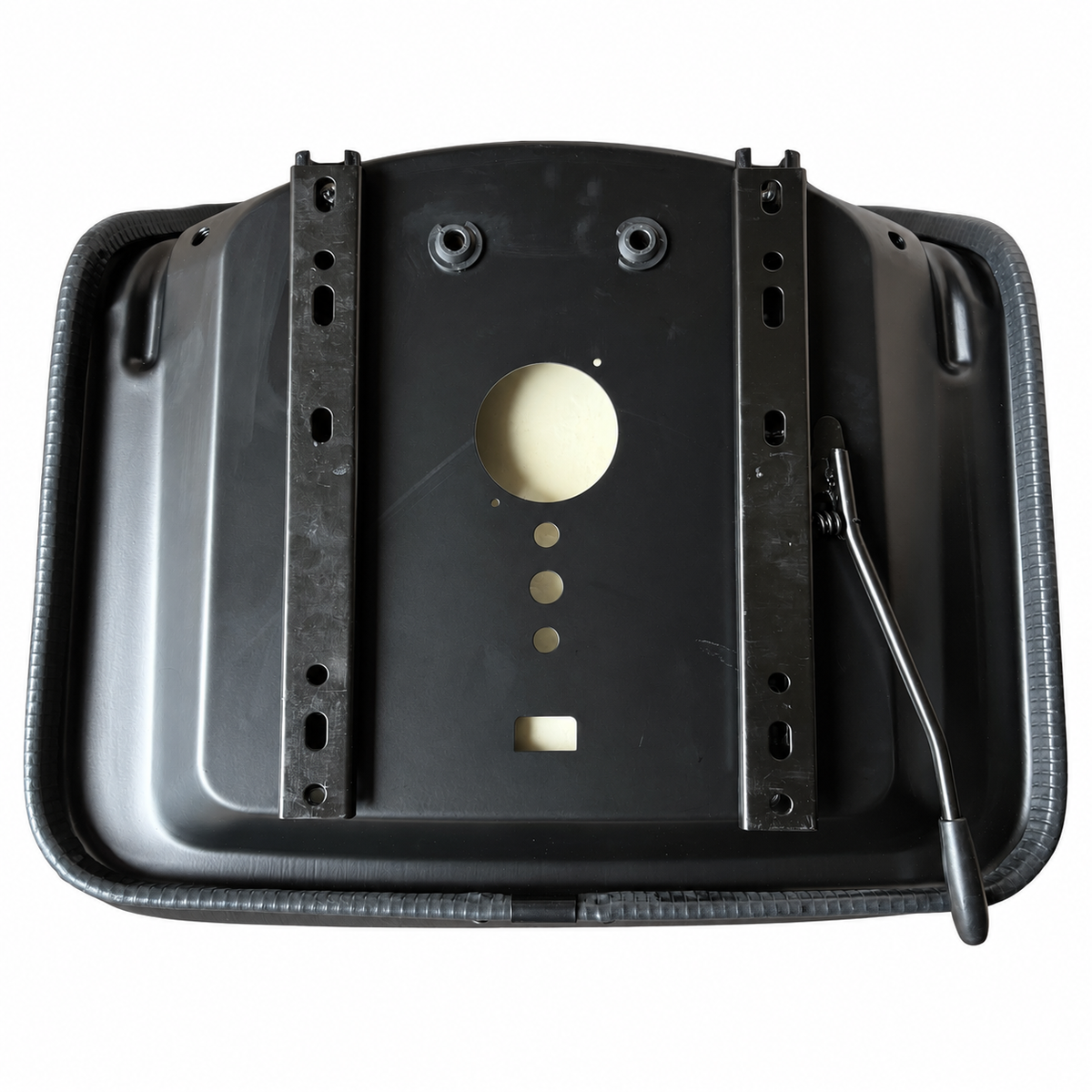

Mounting. The pan is drilled 203 mm across, with fixing centres of 250 and 290 mm front to back. With the runner option, the runners bolt to the 250 mm pattern and give seven machine-side fixing points, four of them slotted, with fixed centres of 150, 180, 200, 203, 230, 250 and 285 mm and a maximum span of 284 mm.

Specifications

• Overall width 500 mm
• Overall depth 510 mm
• Overall height 335 mm
• Back type: low back
• Switch aperture 70 mm round; fixing centres 85 mm, screw-mount only
• Mounting hole centres 203 mm across; 250 and 290 mm front to back
• Colour: black vinyl over a metal-framed moulded base, multiple fixing points, drain hole
• Seat weight 5,500 g; runner set 1,200 g; complete kit 6,700 g
• Condition: new

What you receive

1x seat — 1 × AQS120 seat. Seat switch, runners, brackets and mounting hardware are not included.

1x seat with runners — 1 × AQS120 seat, 1 × set of AQS005 runners (offset arm, release arm on the right, 150 mm of travel over 11 lock positions), 4 × M8 × 20 mm round-head socket bolts and 8 × washers for bolting the runners to the seat. Seat switch not included, and neither are the bolts for mounting the runners to your machine, as the length needed varies.

Reference numbers

The same seat in yellow is bought as a replacement for John Deere AUC11476, GY20496, GY21210 and GY20664. These are quoted for identification only. Please check the dimensions above against your original before ordering.

AQ Parts Ltd is an independent supplier and is not affiliated with or endorsed by any OEM. All manufacturer names and part numbers are quoted for reference only, to identify compatibility.
