Seat Runner Set AQS010 Slide Rails fits AQ Parts AQS180 AQS200 Mower Seats

A set of straight-arm sliding seat runners for ride-on mowers, garden tractors, utility vehicles, quads, and compact plant and turf equipment. Also known as slide rails or seat slides.

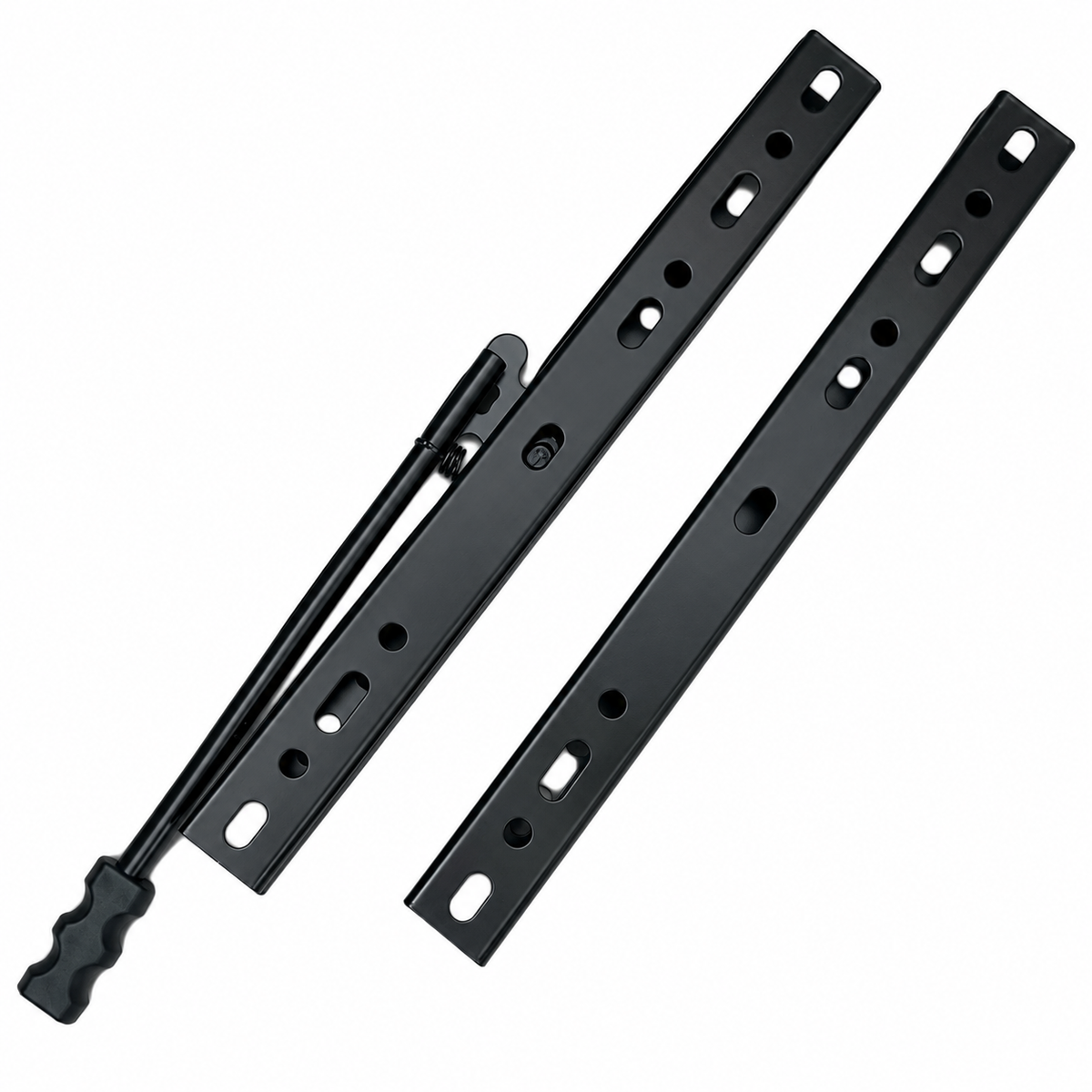

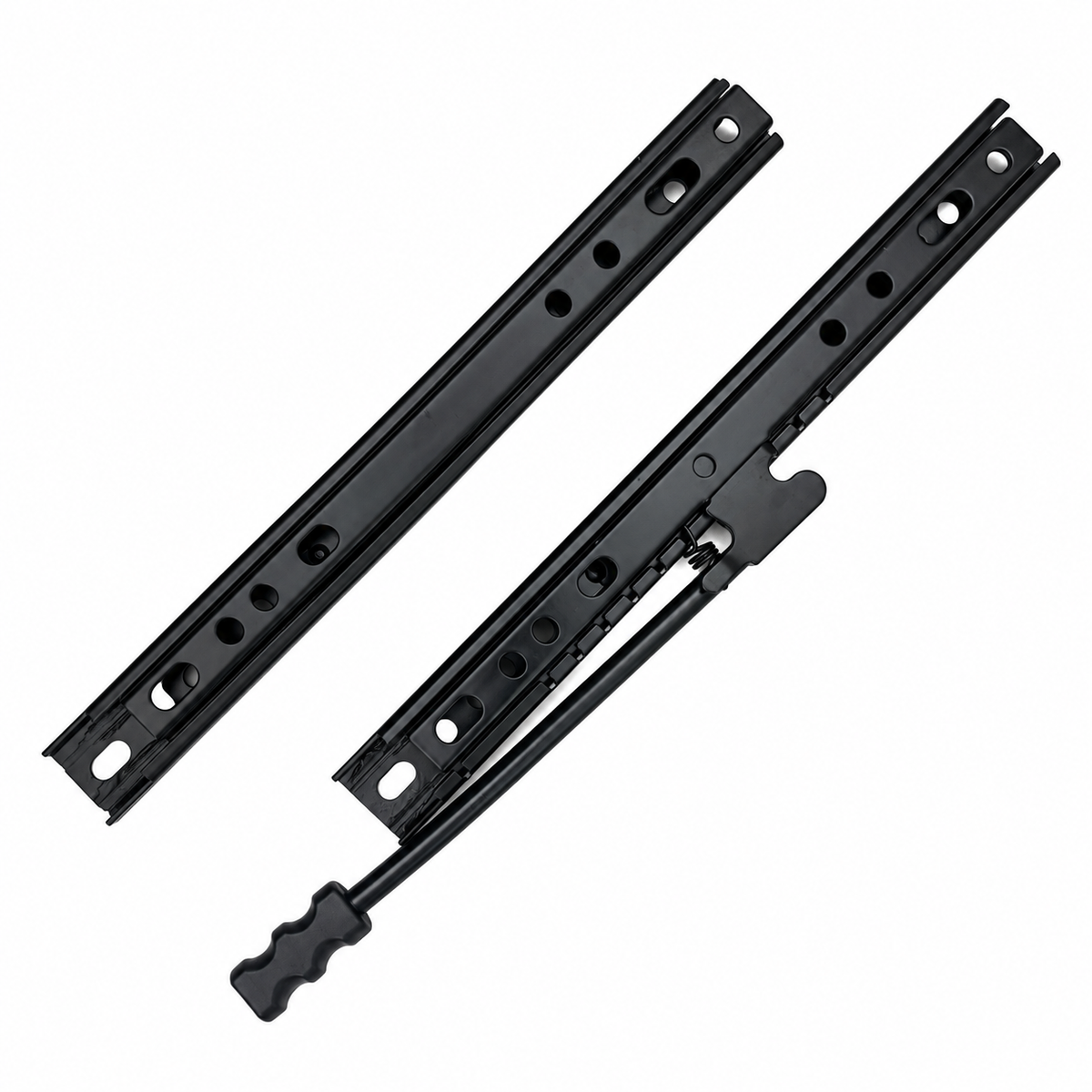

Each runner comes in two halves — one bolts to the machine, the other to the seat, and they slide together. Once fitted they give the operator 203 mm of fore and aft adjustment over 11 lock positions, roughly 18 mm per notch, so the seat position can be set finely rather than in coarse steps.

Confirmed to fit our own AQS180 and AQS200 seats. We hold both parts, so that is one fitment we can state without qualification. For any other seat or machine, work from the dimensions below.

Measure your machine first. These runners are sold on their dimensions, not on a machine model list. The figure that decides whether they fit is the distance between the mounting centres on your machine. Compare it against the range below before ordering.

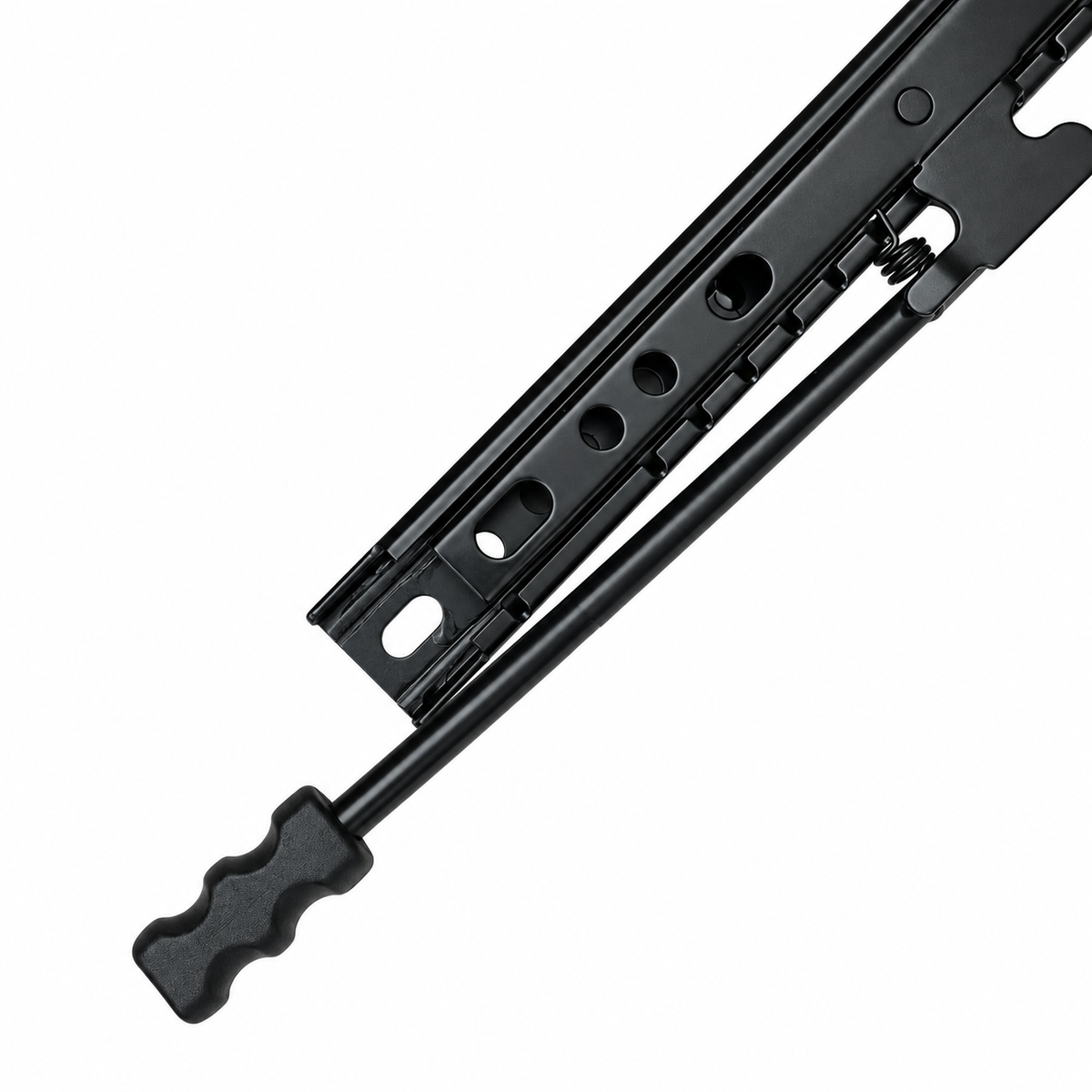

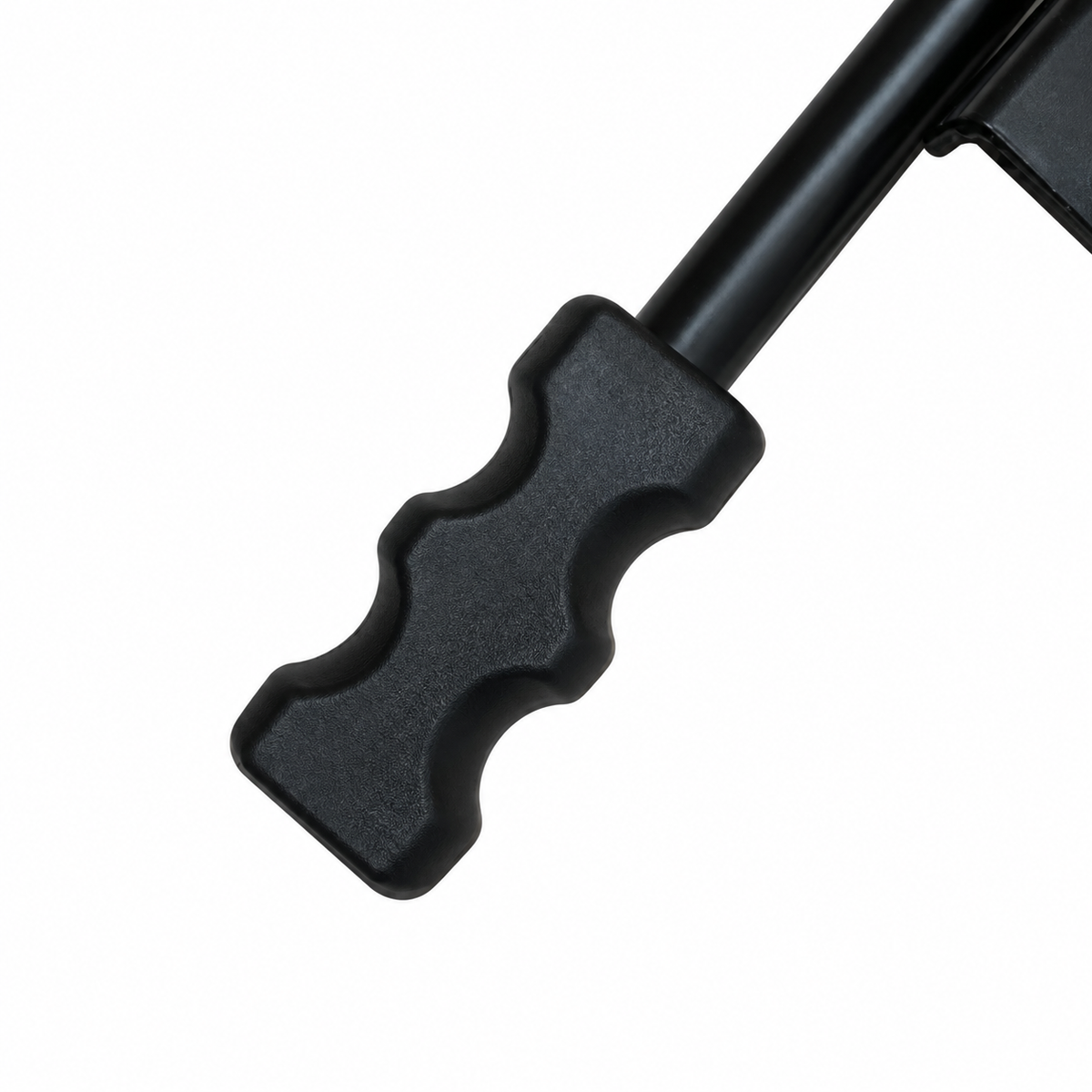

Handed. The release arm is straight and sits on the left of the seat. If you need the adjuster on the right, our AQS005 offset-arm runners are the ones you want.

They have a front and a back. The edge distances differ at each end, so fitting them reversed shifts every position by roughly 3 mm.

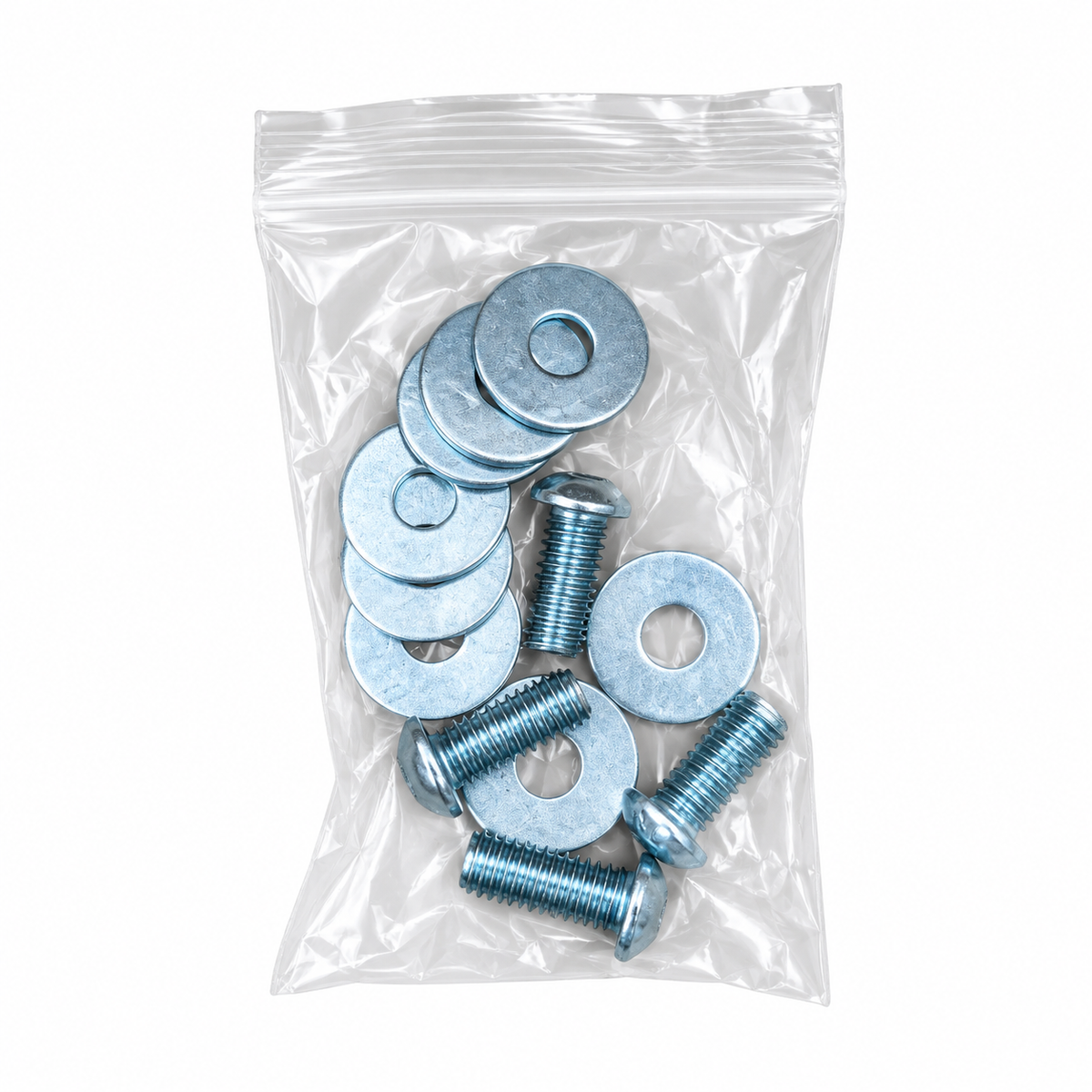

Fixings included. A fixing kit of 4 × M8 × 20 mm round-head socket bolts and 8 washers is supplied for the runner-to-seat fixing, sized for our own seat pans. If you are fitting to another make of seat, check your pan thickness against that bolt length. Bolts for fixing the runners to your machine are not supplied, as the length needed varies from machine to machine. The runners take 8 mm bolts throughout.

Specification
Model AQS010
Arm type straight, release arm on the left
Supplied as a set of two runners, two halves per side
Overall length 360 mm
Seat-side rail length 321 mm
Width 34.5 mm
Thickness 21.5 mm
Travel 203 mm over 11 lock positions
Adjustment about 18 mm per notch
Bolt holes 8 mm throughout
Material steel
Weight 1,455 g per set
Condition New

Mounting centres — the dimension to check

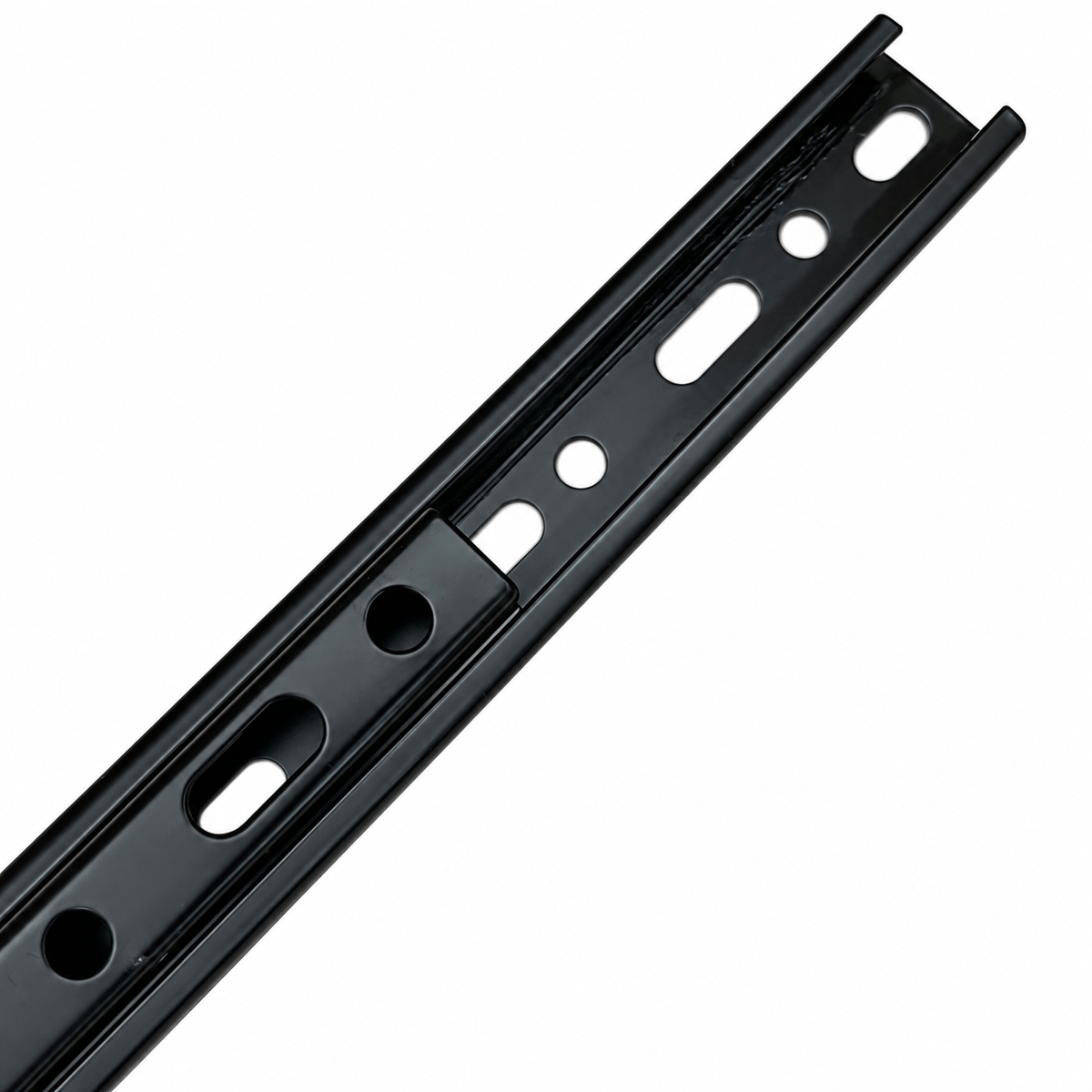

Machine side, ten fixing points, six of them slotted: fixed centres of 180, 200, 203, 230, 250, 285, 290 and 300 mm, with near-continuous adjustment from about 100 mm to 339 mm thanks to the slots. Maximum span 339 mm.
Seat side, eight fixing points, three of them slotted: centres of 200, 203, 250, 285 and 290 mm, which covers every pattern across our seat range.

AQS010 or AQS005? Neither supersedes the other. AQS005 reaches down to 150 mm centres, which these do not, so it suits tight or compact installations. AQS010 reaches 290 and 300 mm, which AQS005 does not, so it suits larger machines.

Box contents: 1 × set of AQS010 seat runners, 4 × M8 × 20 mm bolts, 8 × washers.

Measure the mounting centres on your machine, and the centres on the underside of your seat pan, then check both against the figures above. If you would like help, message us with those measurements, or a photo of your existing mounting arrangement, and we are happy to check before you buy.
