Seat Pivot Bracket and Pin Fits John Deere M168593 Seat Support X300 X350 X370 X500 X540 X580 X750

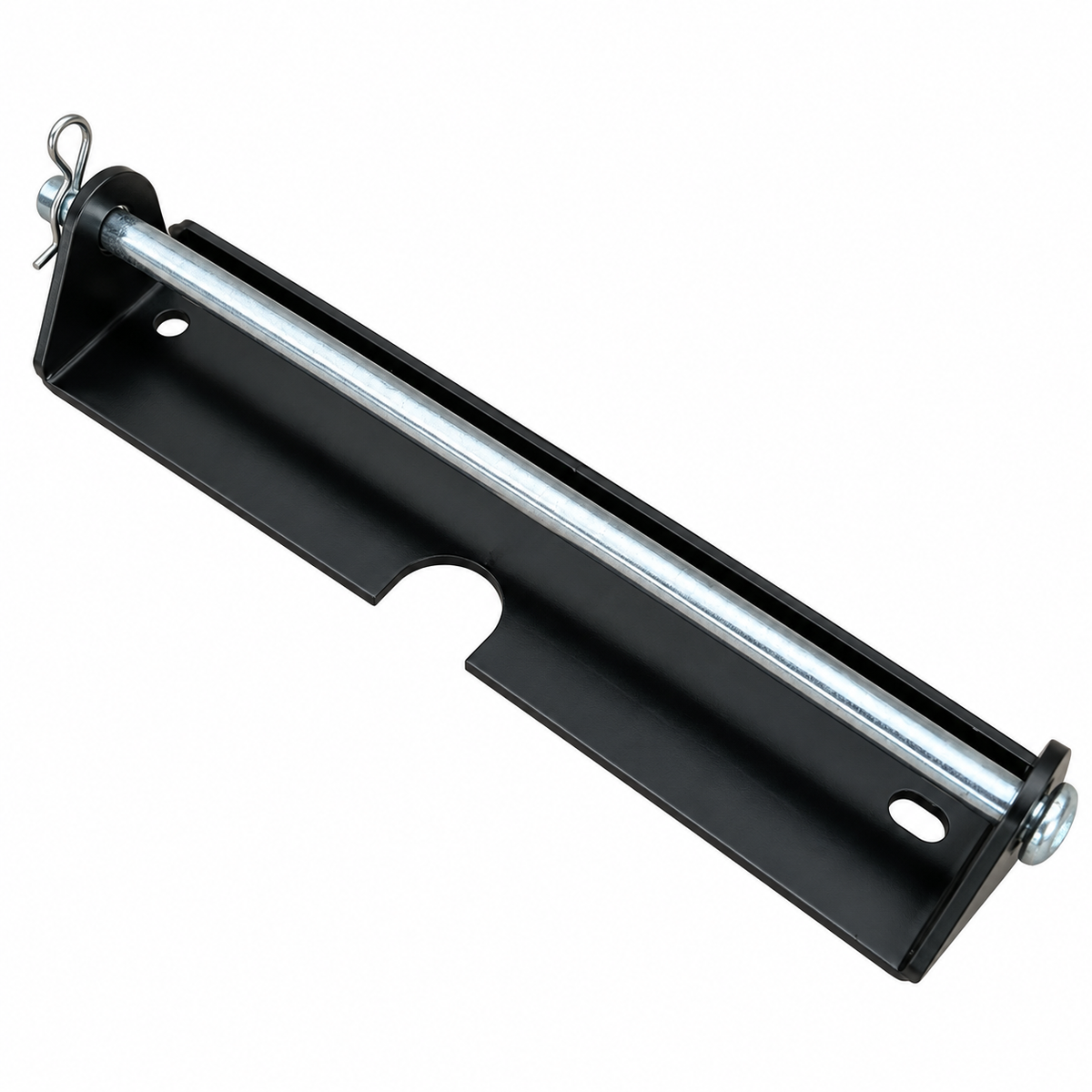

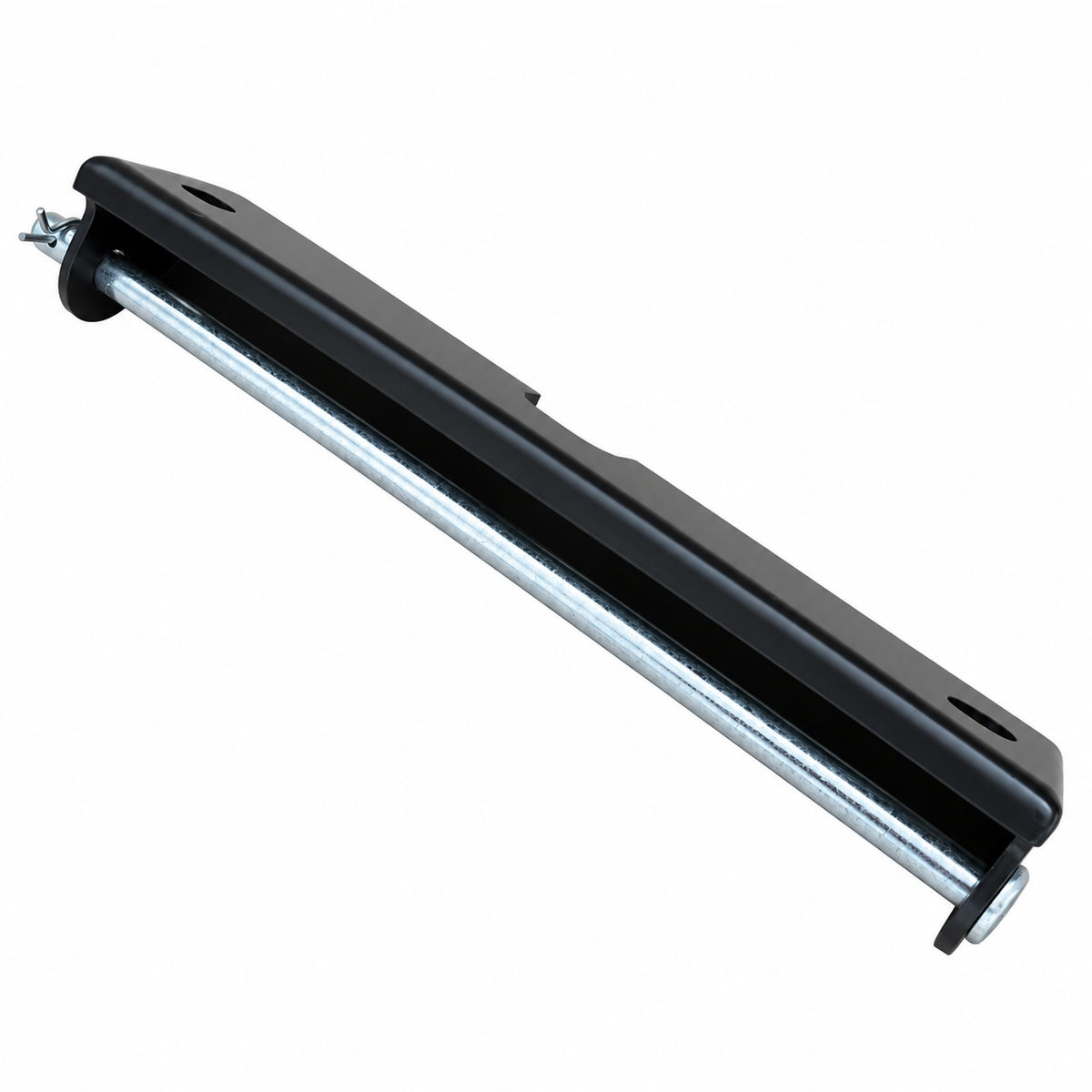

Seat pivot bracket and pin, allowing the seat to tilt forward on its base.

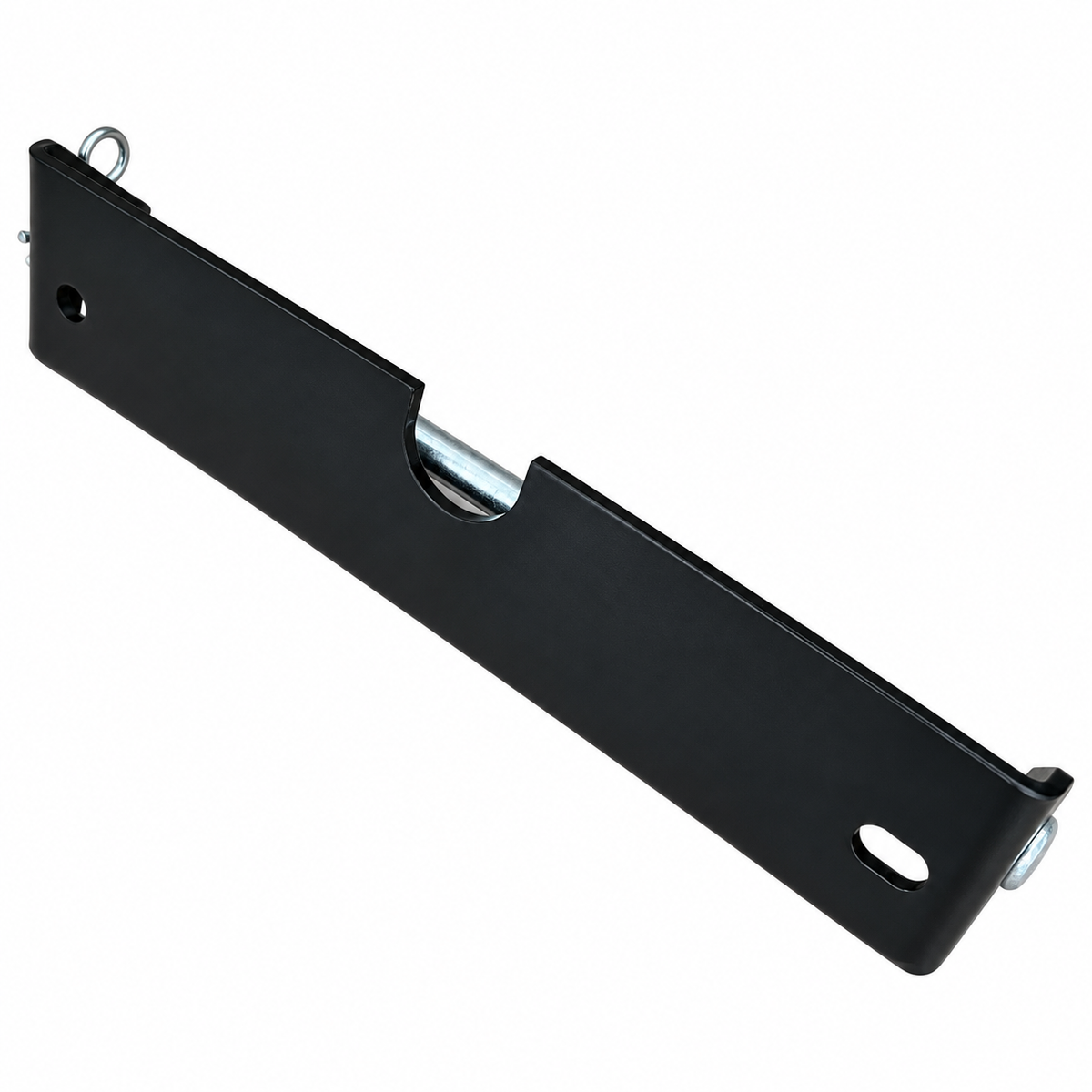

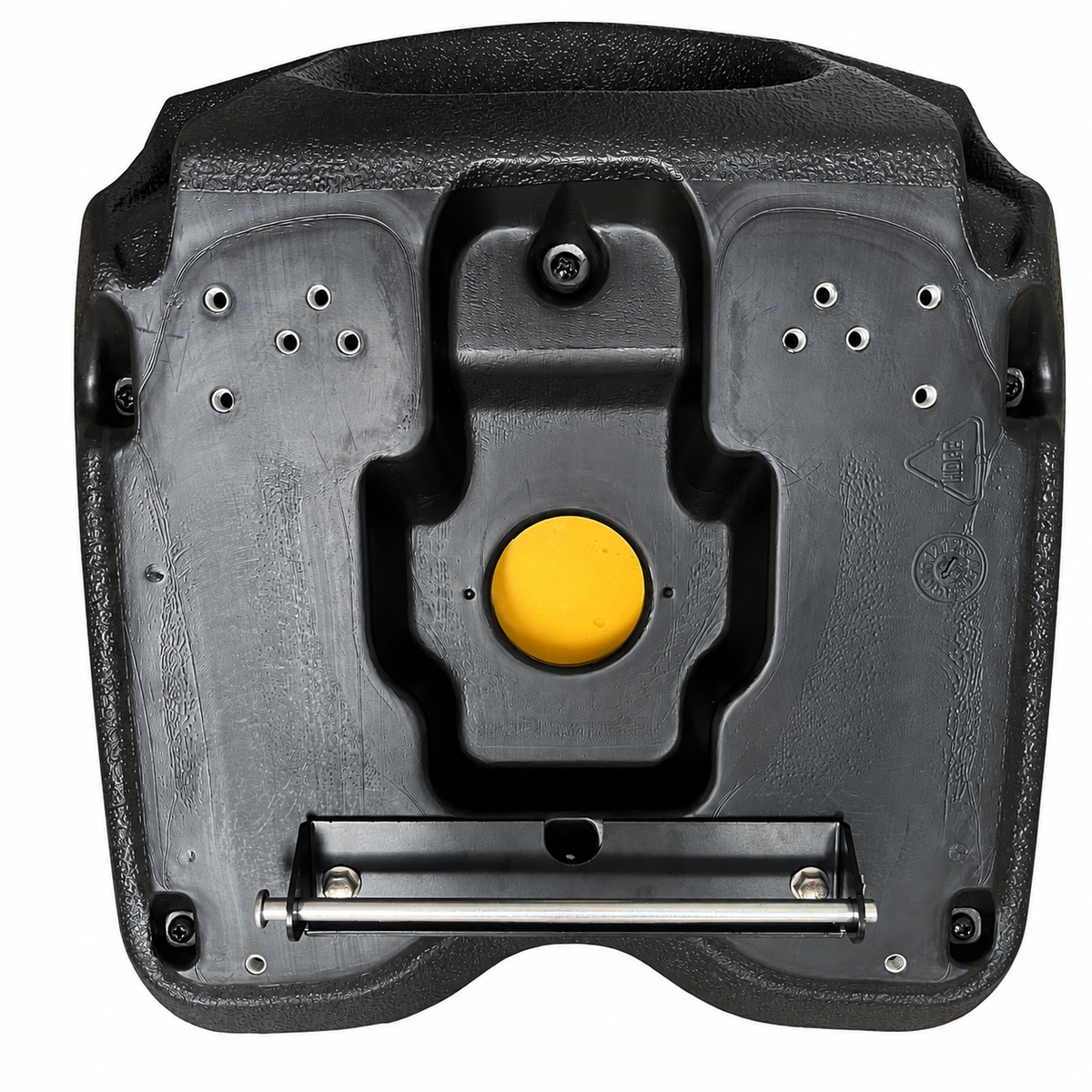

Bolts to the seat base plate on 200mm to 205mm centres. One fixing hole is slotted, so it takes either the 200mm or the 203mm (8in) pattern without modification.

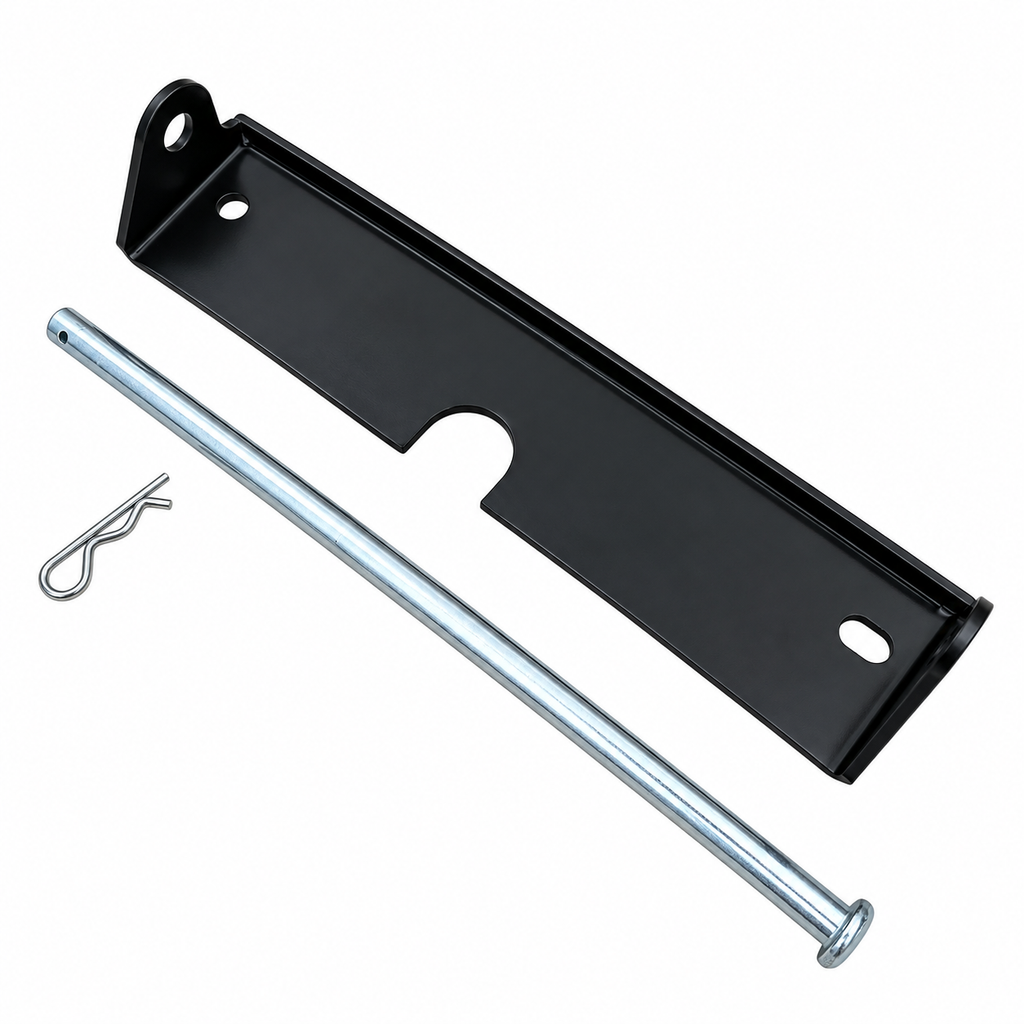

Supplied complete with the pin and R-clip. Fixing bolts are not included – reuse your originals or match to 8mm.

Fitment – verified. Fits the John Deere M168593 seat support. Verified on the X370. The following models use the same seat support:

X300 series: X300, X300R, X304, X305R, X310, X320, X324, X330, X340, X350, X350R, X354, X360, X370, X380, X384, X390, X394
X500 series: X500, X530, X534, X540, X570, X580, X584, X590
X700 series: X750, X754, X758

Fitment – likely, please check first. The overall length and pin length also match the bracket fitted to X485, X495, X575, X585, X595, X710, X720, X724, X728, X729, X730, X734, X738, X739, X740, X744, X748, X749 and X950R.

Check before ordering. Some of those machines have a bracket with three holes in the pivot boss, giving three height positions. This bracket has one, at 25mm above the base plate.

Please confirm fitment against your original part before ordering, or message us with your model details and we will check for you.
